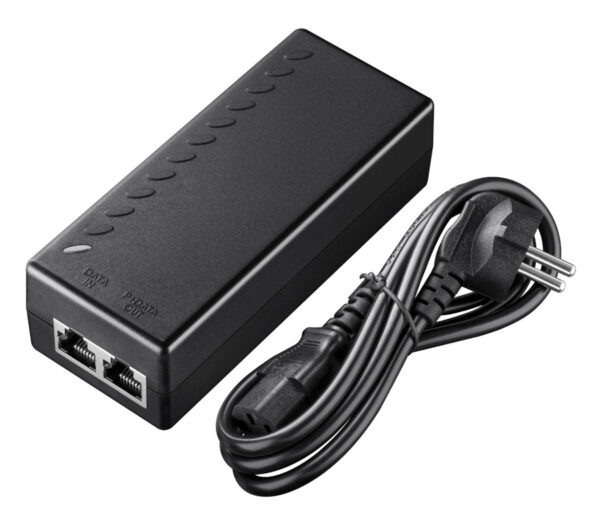

CUDY Gigabit PoE+/PoE injector POE200, 30W

Gigabit PoE+/PoE injector από την Cudy, πλήρως συμβατό με συσκευές PoE, όπως κάμερες IP, access points και τηλέφωνα IP.

-up to 30W power supply
-supports 10/100/1000 Base-T applications
-LED indicators power input and PoE output
-internal AC/DC converter no need for external power brick
-easy plug-and-play installation
-multi-protection

Τεχνικά χαρακτηριστικά
No. of channels: 1
Pass Through Data Ratesi: 10/100/1000Mbps
Power over Ethernet Output: Pin Assignment and Polarity: 1/2 (-), 3/6 (+), Output Power Voltage: 54VDC, User Port Power: 30W max
Input Power Requirements: AC Input Voltage: 100 to 240 VAC, AC Input Current: 0.5A 100-240 VAC, AC Frequency: 50 to 60 Hz
Dimensions: 121mm x 50mm x 36mm
Indicators: System Indicator: AC Power, User Indicator: Channel Power
Connectors: Shielded RJ-45, EIA 568A and 568B
Protection: Over current protection, Over load protection, Over voltage protection, Anti-interference protection
Operating Ambient Temperature: -40 to 40°C
Operating Humidity: Maximum 85%, Non-condensing

Περιεχόμενα συσκευασίας
PoE+/PoE injector
Καλώδιο τροφοδοσίας
Οδηγός γρήγορης εγκατάστασης
